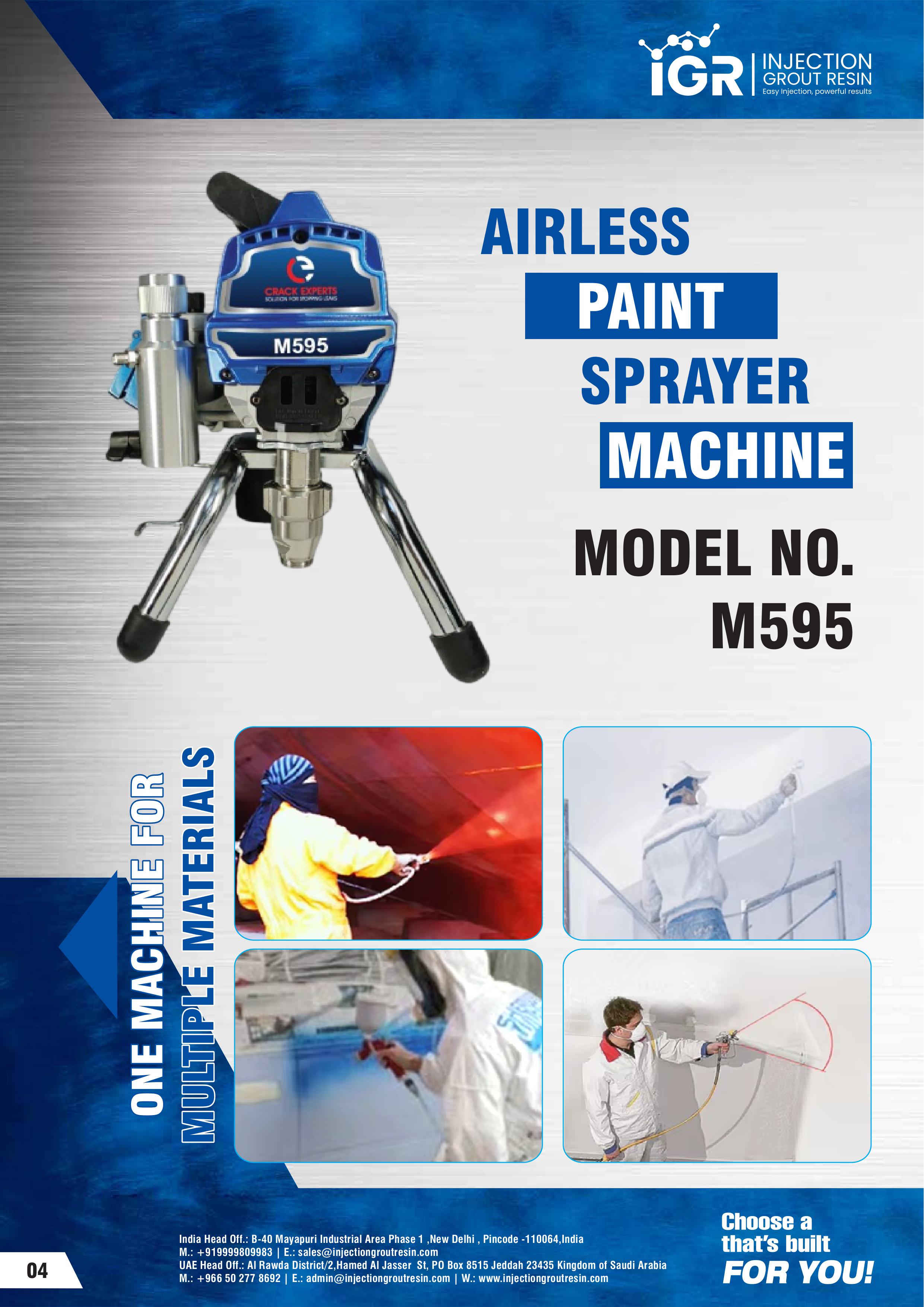

Airless Paint Sprayer - Model 595
The M-595 Airless Paint Sprayer is a high-pressure electric airless spraying machine designed for fast, uniform, and professional coating application. Features electronic pressure control, high-power DC motor, and stainless-steel plunger pump.
Key Features
- Electronic pressure regulating system controlled by microchip
- Knob-based pressure adjustment for precise control
- Micro-electric display screen with electronic voltage regulation
- Special stainless-steel plunger rod with high wear resistance
- Three internal filter systems to reduce impurity damage
- Fan-shaped high-pressure spray gun with fine uniform atomization
- Enclosed DC motor housing protects internal components
- ISO 9001:2015 certified, RoHS compliant
Technical Specifications
| Model | M-595 |
|---|---|
| Rated Power | 1600 W |
| Motor Type | Enclosed DC Motor |
| Maximum Working Pressure | 22 MPa |
| Maximum Pressure (Peak) | 3300 PSI |
| Maximum Flow Rate | 2.5 L/min |
| Spray Distance | 35 cm |
| Spray Width | 30 cm |
| Gross Weight | 22 kg |
| Warranty | 12 months |
Product Videos
Product Overview
The M-595 Airless Paint Sprayer is a high-pressure electric airless spraying machine designed for fast, uniform, and professional coating application. It is suitable for multiple coating materials and construction environments, offering consistent spray patterns, fine atomization, and high transfer efficiency.
The machine uses electronic pressure control, a high-power DC motor, and a stainless-steel plunger pump for durability and performance.

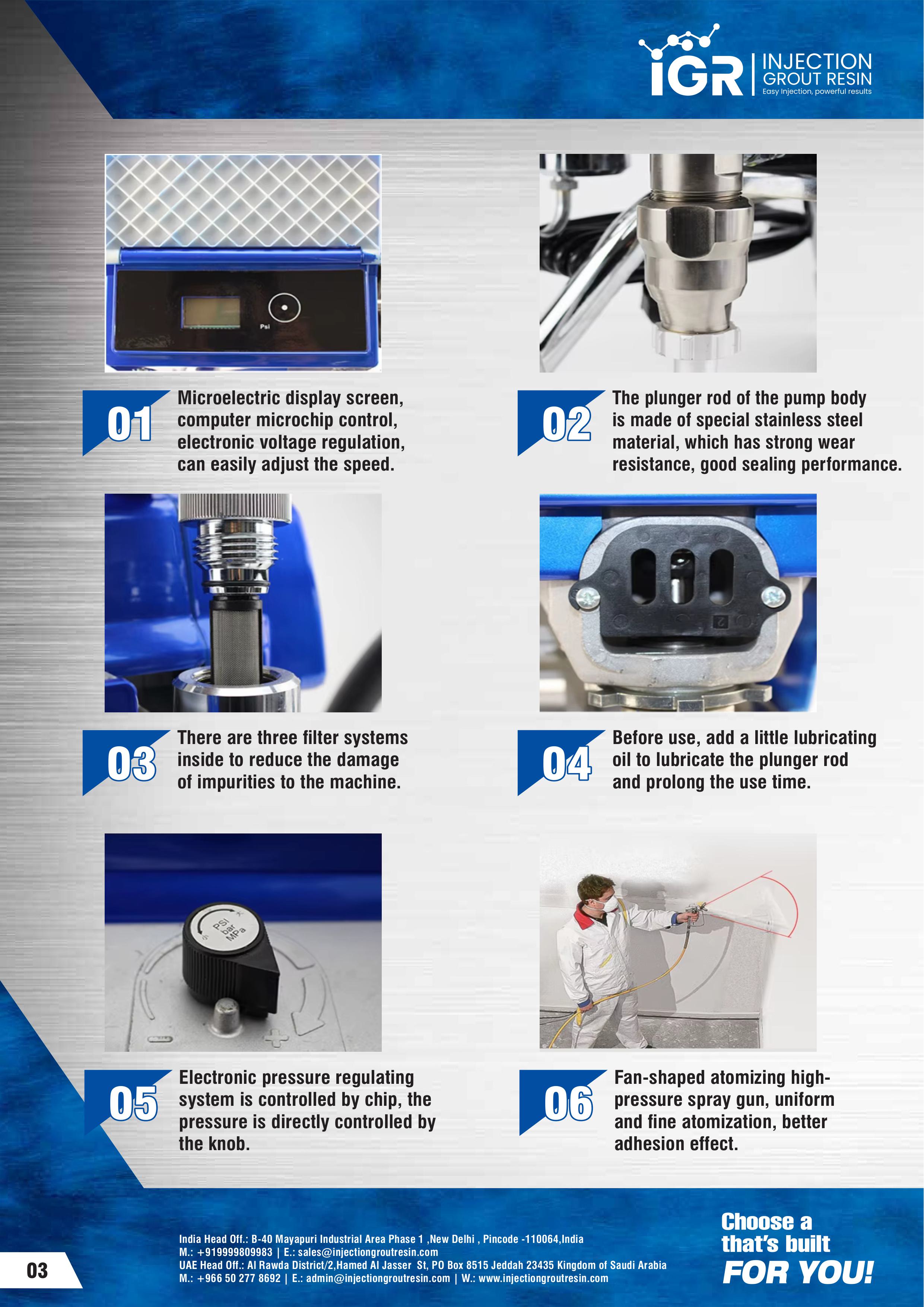

Key Features
Performance and Control
- Electronic pressure regulating system controlled by a microchip
- Knob-based pressure adjustment for direct and precise control
- Micro-electric display screen with electronic voltage regulation
- Consistent spray fan with uniform atomization
Pump and Durability
- Special stainless-steel plunger rod
- High wear resistance
- Excellent sealing performance
- Three internal filter systems
- Reduces impurity damage and extends machine life
Spray Quality
- Fan-shaped high-pressure spray gun
- Fine and uniform atomization
- Better surface adhesion
- Suitable for smooth, streak-free finishes
Maintenance and Longevity
- Intake valve design allows easy cleaning and debris removal
- Requires lubricating oil before use to increase plunger life
- Enclosed motor housing protects internal components

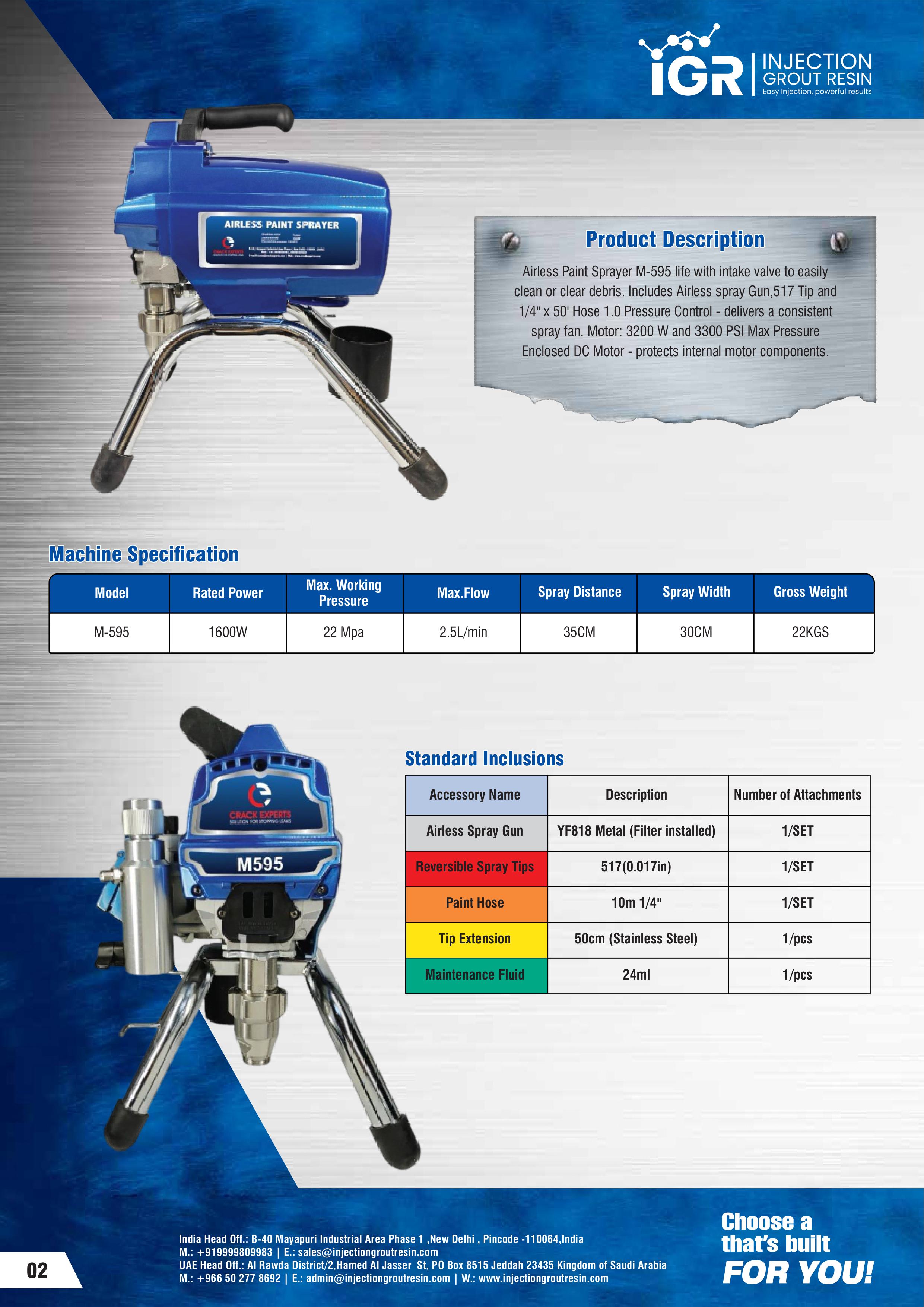

Technical Specifications
| Parameter | Specification |
|---|---|
| Model | M-595 |
| Rated Power | 1600 W |
| Motor Type | Enclosed DC Motor |
| Maximum Working Pressure | 22 MPa |
| Maximum Pressure (Peak) | 3300 PSI |
| Maximum Flow Rate | 2.5 L/min |
| Spray Distance | 35 cm |
| Spray Width | 30 cm |
| Gross Weight | 22 kg |
Standard Inclusions (Accessories Supplied)
| Accessory | Description | Quantity |
|---|---|---|
| Airless Spray Gun | YF818 Metal (Filter installed) | 1 set |
| Reversible Spray Tip | 517 (0.017 in) | 1 set |
| Paint Hose | 10 m × 1/4” | 1 set |
| Tip Extension | 50 cm (Stainless Steel) | 1 piece |
| Maintenance Fluid | 24 ml | 1 piece |
Applications
Suitable Materials
- Interior and exterior paints
- Wall coatings
- Construction coatings
- Protective and decorative coatings
Typical Usage Areas
- Residential buildings
- Commercial buildings
- Industrial projects
- Infrastructure and construction sites
- Large wall surfaces and ceilings
One machine for multiple materials, reducing changeover time and labor cost.
Quality and Compliance
- ISO 9001:2015 Certified Company
- RoHS Compliant
- Quality comparable to international brands
- Designed for export markets (10+ years export experience)
Warranty and Commercial Terms
- Warranty: 12 months
- OEM services available
- Low MOQ supported
Specifications are approximate and subject to change without notice.
