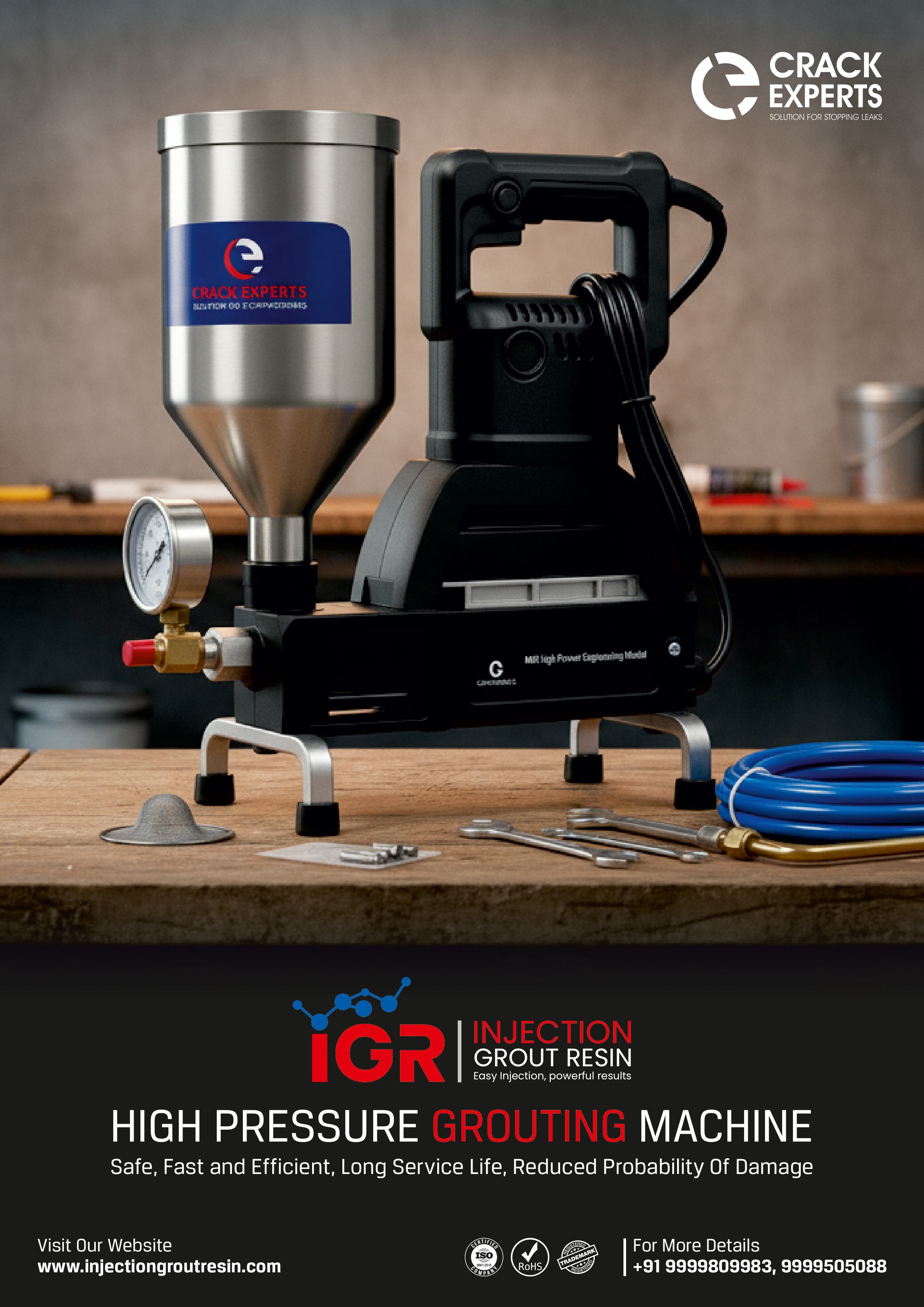

High Pressure Grouting Machine

Product Overview

This high-pressure grouting machine is designed for professional crack injection and structural repair works. It delivers high pressure and stable flow, making it suitable for polyurethane resins, epoxy resins, and cement-based slurries.

Safe, Fast and Efficient — Long Service Life — Reduced Probability of Damage

Key Features

• High-pressure, high-flow grouting — 645 Bar / 10,000 PSI maximum injection pressure
• Strong power with stable and efficient performance
• Long service life with reduced operational damage
• Portable and compact — only 15 kg, easy to carry
• Corrosion-resistant construction for durability
• Durable and stable structure for demanding job sites
• Safe and secure operation
• Fast injection with reduced labor time

Performance Attributes

• More sturdy
• Strong power
• High speed
• More stable
• Corrosion preventive
• More secure

Motor and Power System

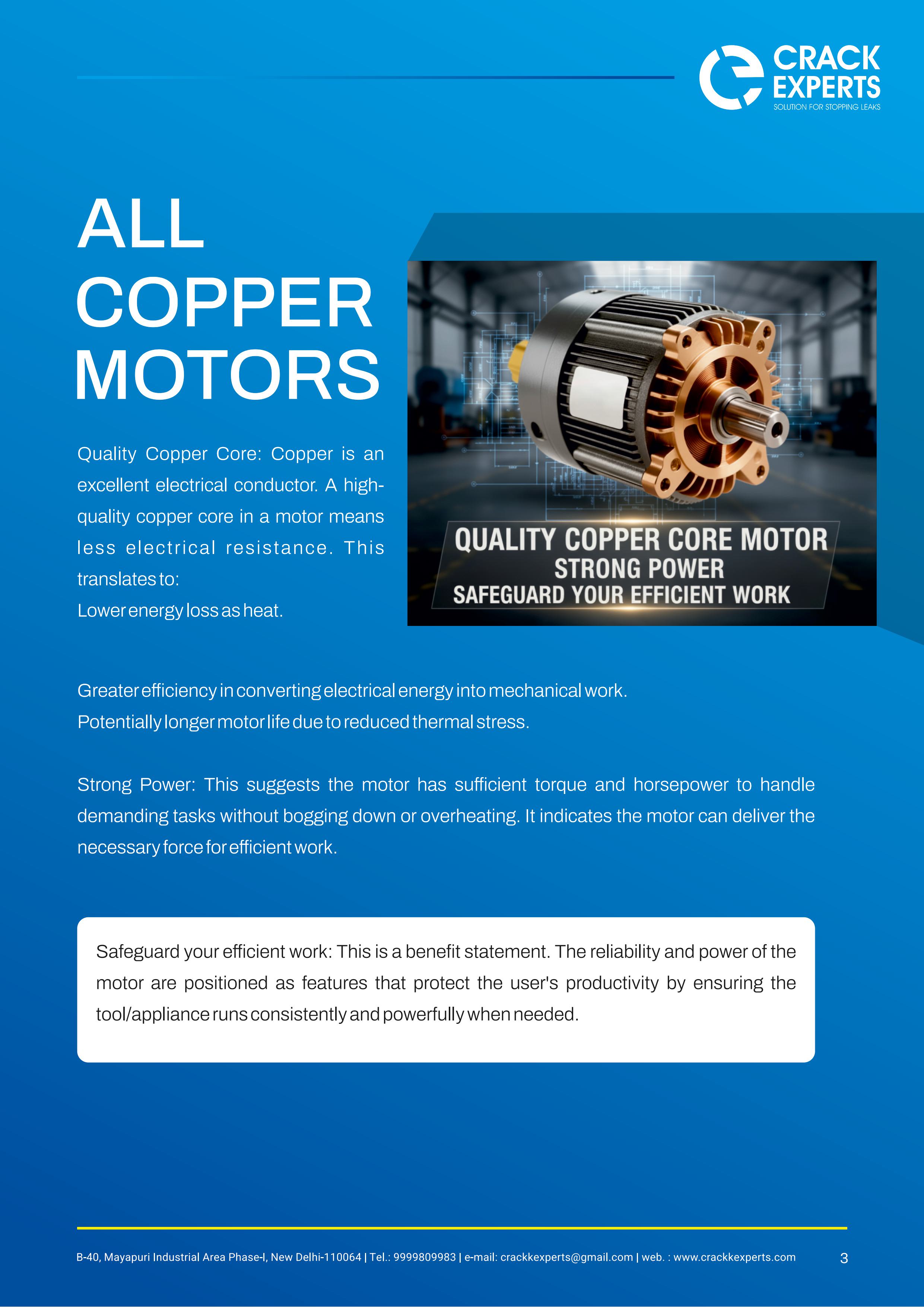

All Copper Motor

• High-quality copper core motor
• Low electrical resistance
• Reduced heat loss
• Higher energy efficiency
• Longer motor life due to reduced thermal stress

Benefits: Strong torque and power output. Handles demanding injection tasks without overheating. Ensures consistent and reliable operation.

Construction and Build Quality

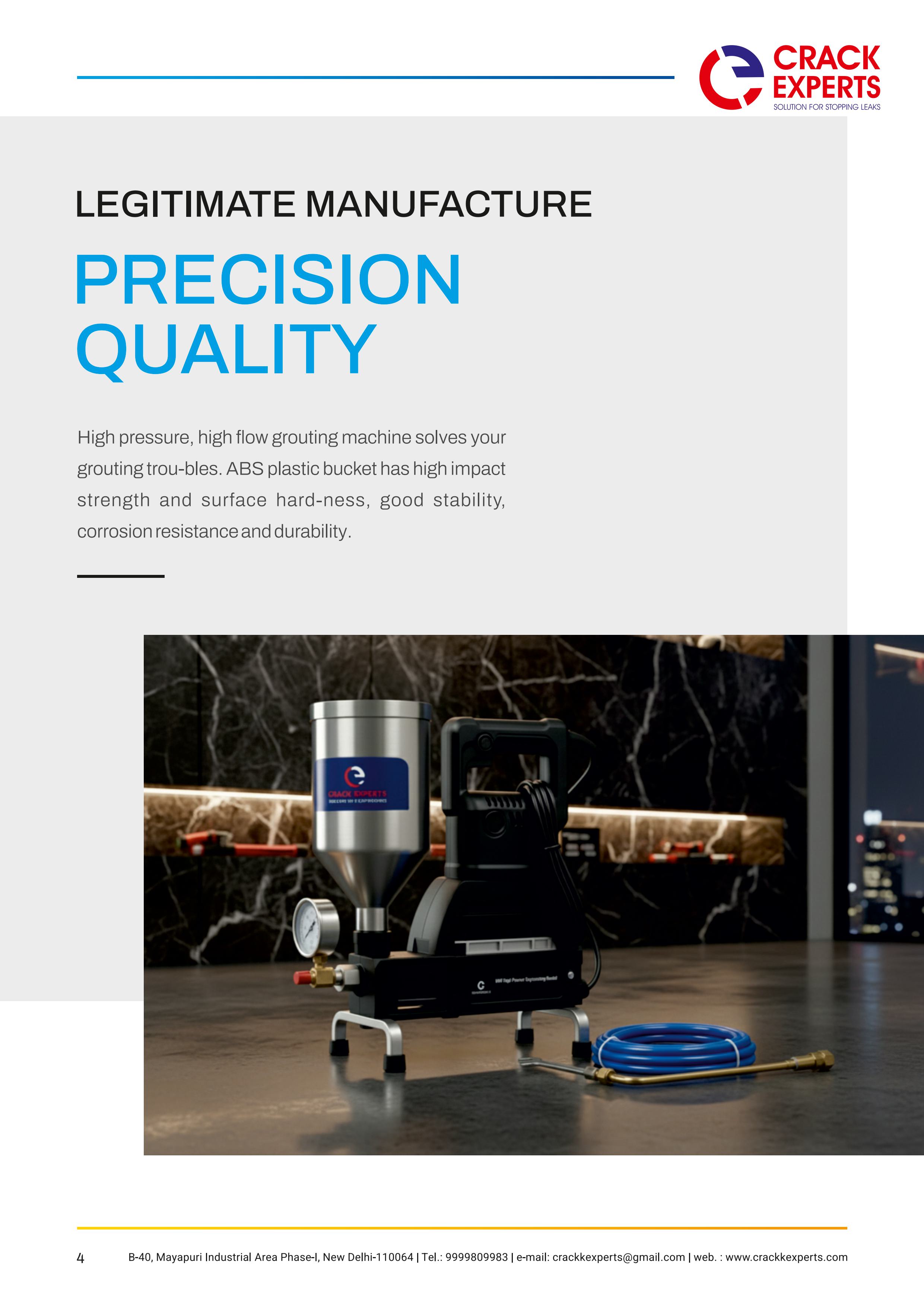

Precision Quality Manufacturing

• High-impact ABS plastic hopper/bucket
• High surface hardness
• Excellent stability
• Strong corrosion resistance
• Durable for long-term professional use

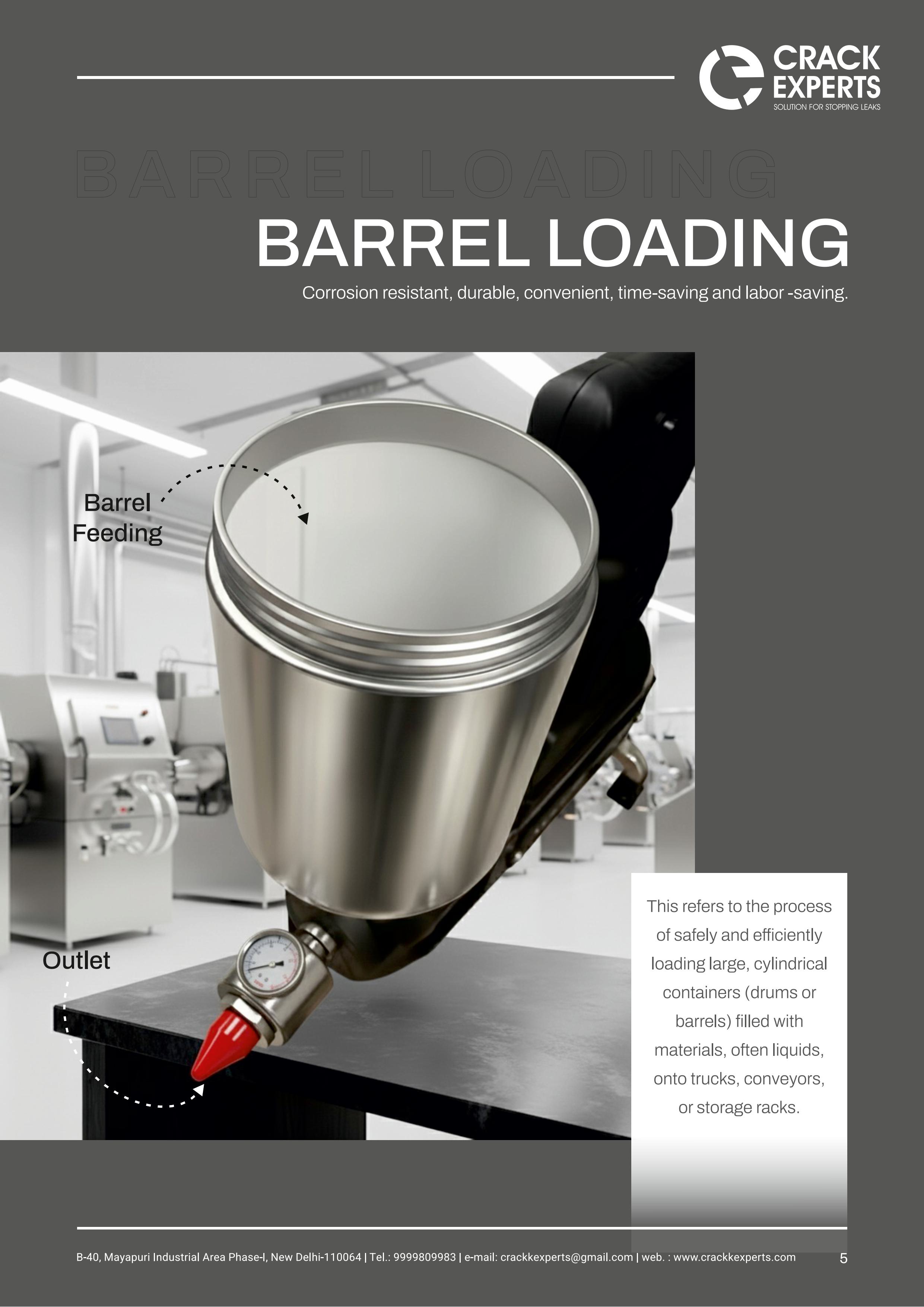

Barrel / Hopper Loading System

• Barrel loading design for easy material feeding
• Corrosion-resistant hopper
• Durable and time-saving operation
• Labor-saving design
• Easy loading and discharge control

Pressure Control System

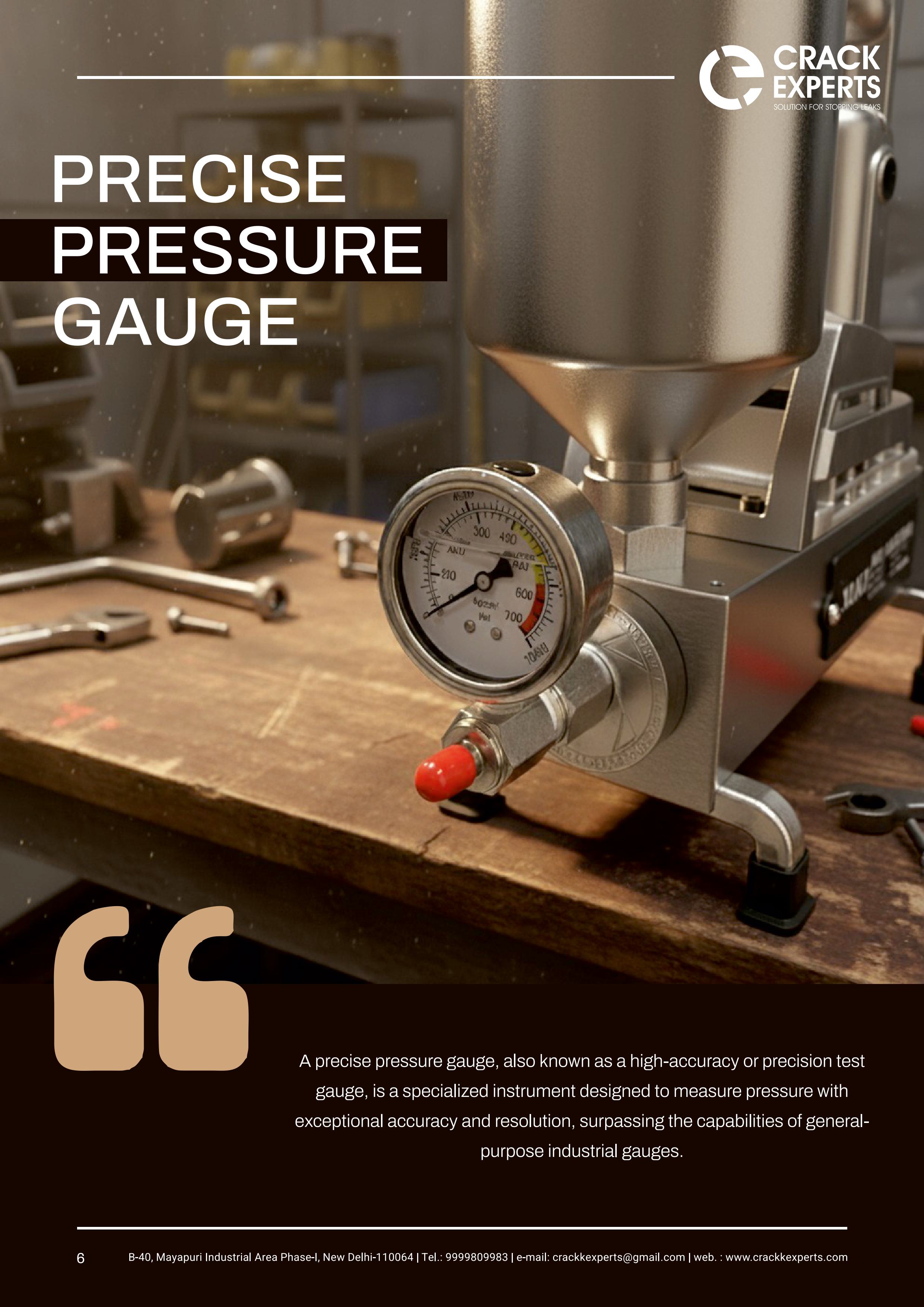

Precise Pressure Gauge

• High-accuracy pressure gauge
• Measures injection pressure precisely
• Superior accuracy compared to standard industrial gauges
• Allows controlled and safe grouting operations

Materials of Application

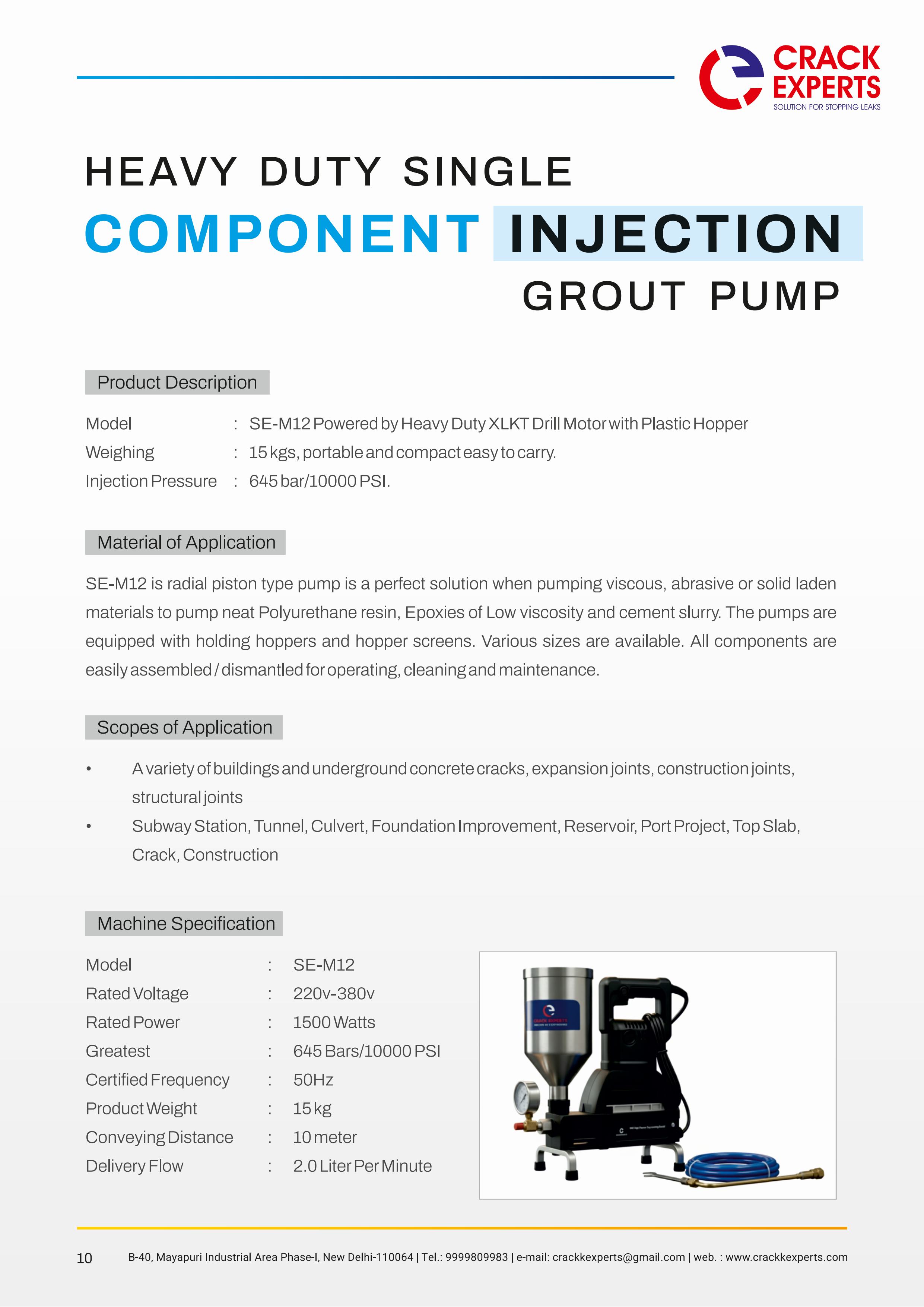

The SE-M12 radial piston type pump is suitable for pumping:

• Polyurethane resins
• Epoxy resins (low viscosity)
• Cement slurry
• Viscous, abrasive, or solid-laden materials

Design Advantages: Holding hopper with hopper screen. Easy assembly and dismantling. Convenient for cleaning and maintenance.

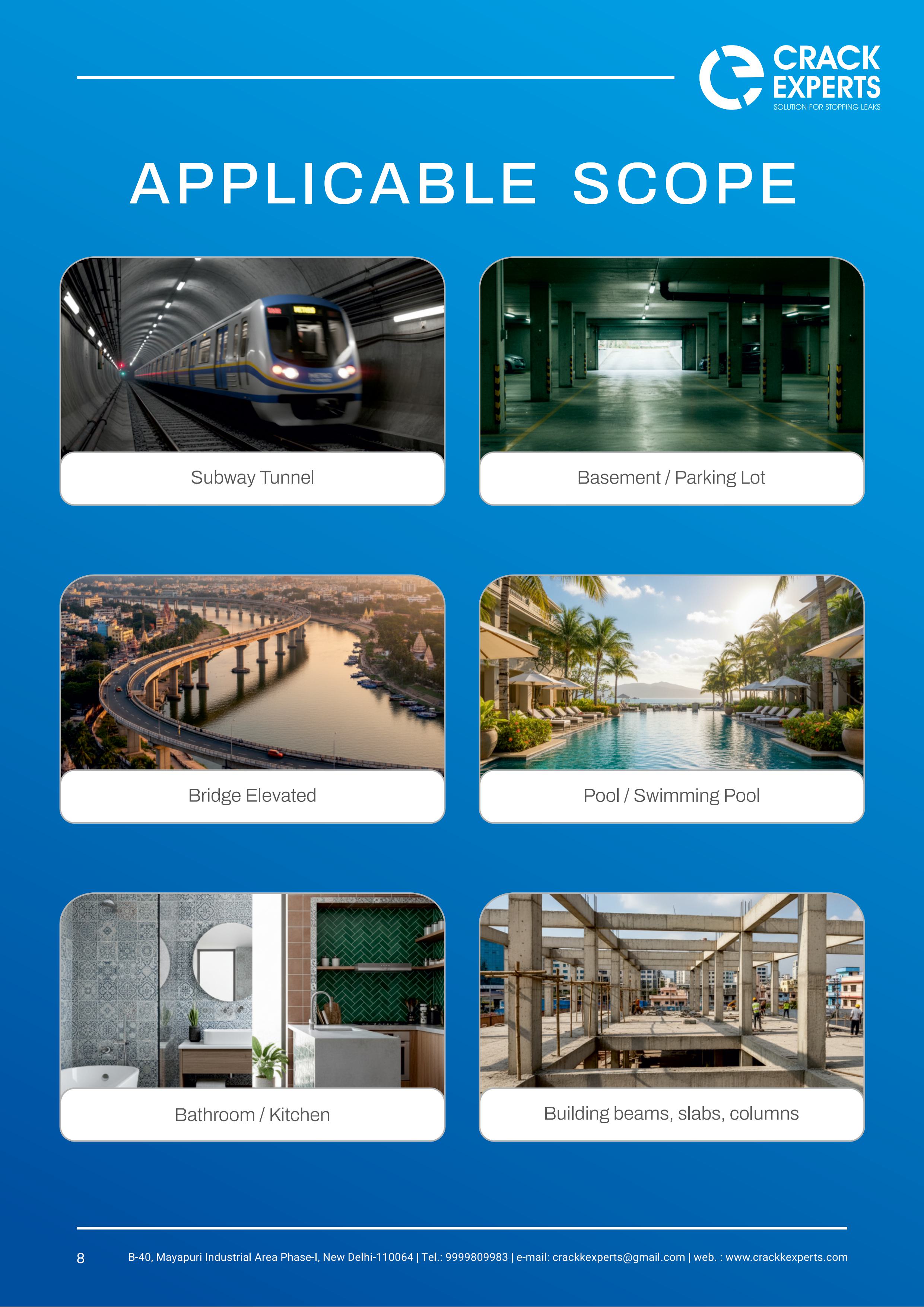

Applications / Scope of Use

Structural and Civil Applications

• Concrete cracks (above ground and underground)
• Expansion joints
• Construction joints
• Structural joints

Infrastructure Projects

• Subway stations and tunnels
• Culverts
• Foundations and reservoirs
• Port projects and top slabs
• Bridge structures

Buildings and Facilities

• Basements and parking lots
• Bathrooms and kitchens
• Swimming pools
• Building beams, slabs, and columns

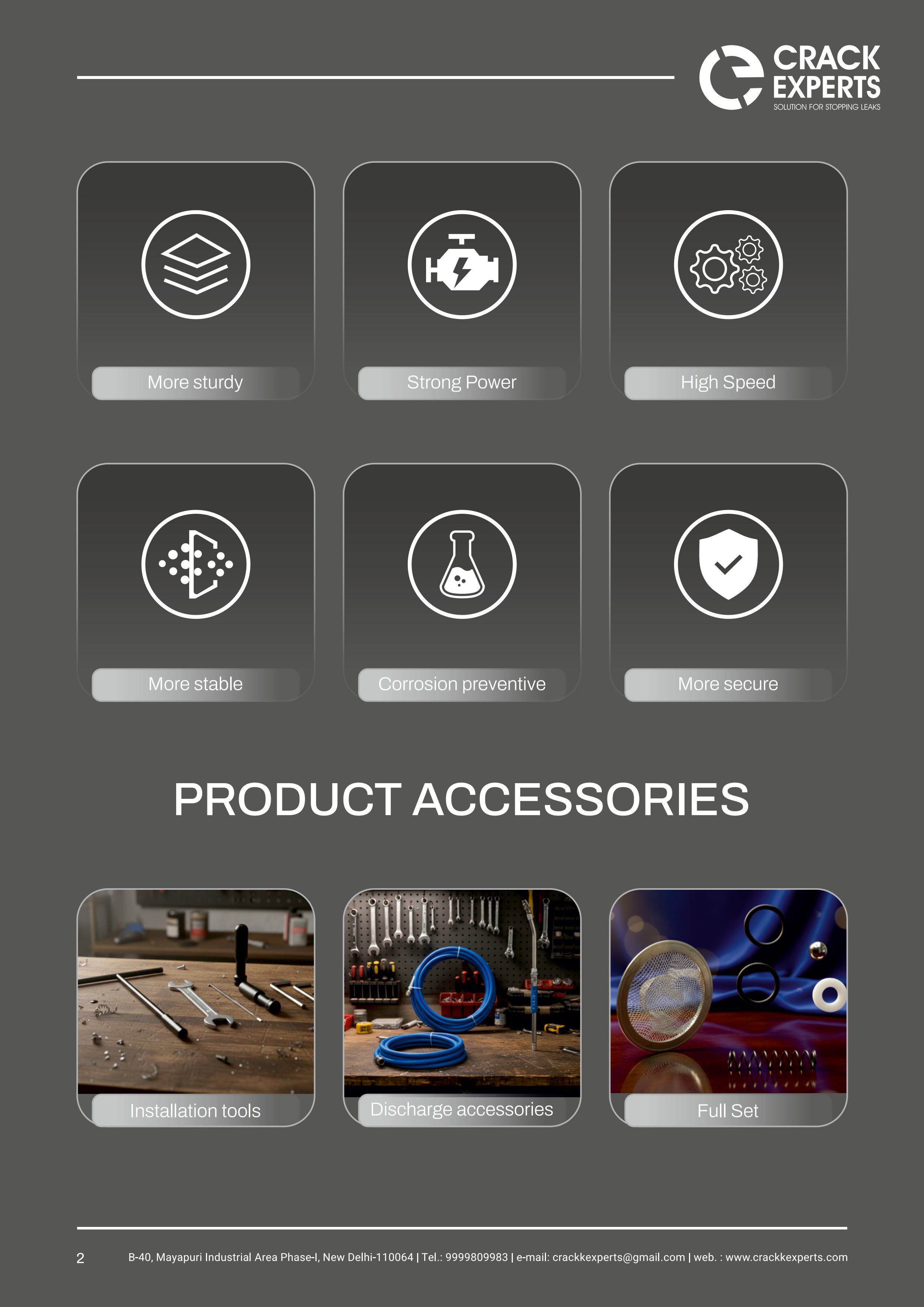

Product Accessories

• Installation tools
• Discharge accessories
• Complete accessory set for operation and maintenance

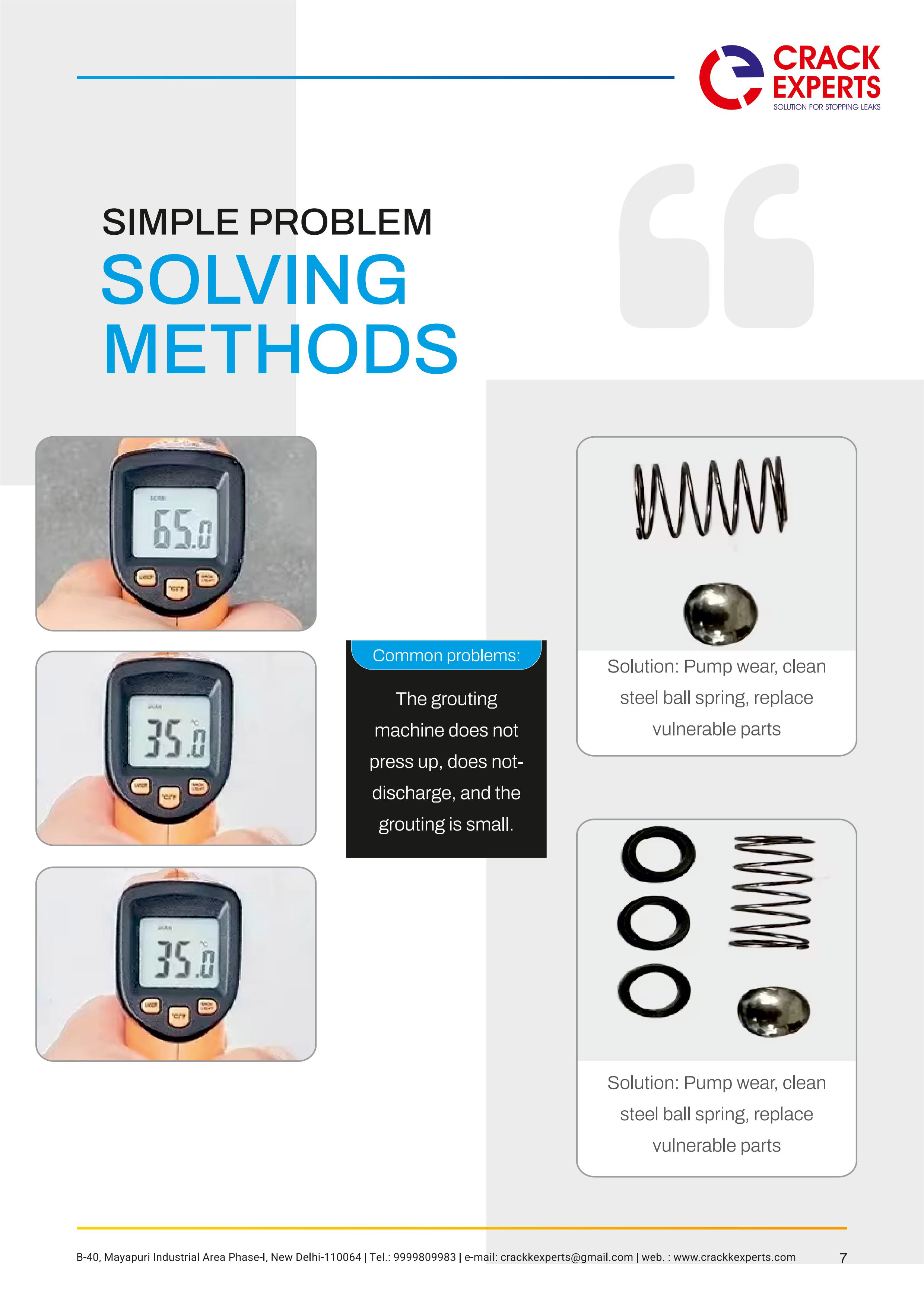

Troubleshooting and Maintenance

Common Problems Addressed

• Machine does not press
• Material does not discharge
• Low or insufficient grouting output

Suggested Solutions

• Inspect pump wear
• Clean steel ball spring
• Replace vulnerable or worn parts
